| Price | RM59.00 |
| Product SKU | ST11 |
| Size (L x W x H) | 15 cm x 2 cm x 15 cm |
| Availability | Out Of Stock |
| Shipping Fee |
Malaysia
Free for certain area only
|
- good sensitivity detector
- integrated circuit
- convenience, safety, saving-energy and practical functions
- easy to install and used widely

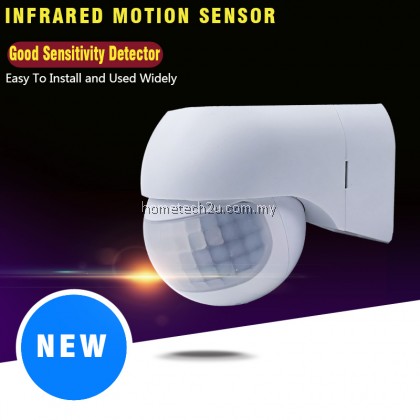

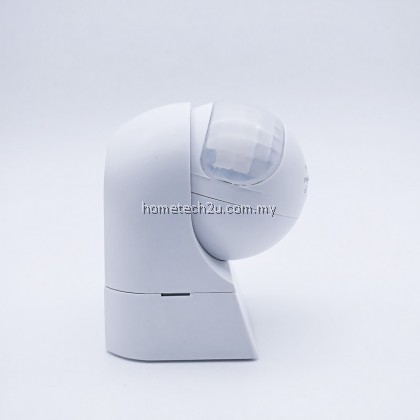

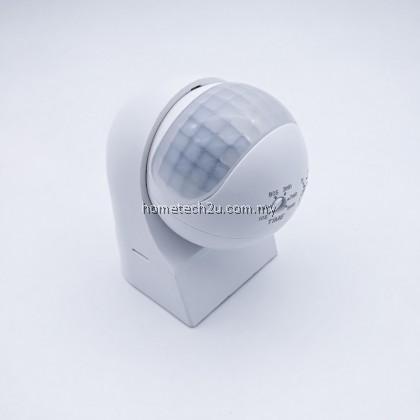

Welcome to read ST11 Infrared motion sensor!
The product adopts good sensitivity detector and integrated circuit. It gathers automatism, convenience, safety, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source and it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely.
SPECIFICATION:
Power Source: 110 -130V/AC 220 -240V/AC Detection Range: 180°
Power Frequency: 50/60Hz Detection Distance: 12m max(<24℃)
Ambient Light: <3-2000LUX (adjustable) Working Temperature: -20~+40℃
Time Delay: Min.10sec±3sec Working Humidity: <93%RH
Max.15 min±2min Power Consumption: approx 0.5W
Installation Height: 1.8-2.5m Detection Moving Speed: 0.6-1.5m/s
Rated Load: 110 -130V/AC : 220 -240V/AC :
500W(incandescent lamp) 800W(incandescent lamp)
200W(energy-saving lamp) 400W(energy-saving lamp)
Lifetime and warranty
ST11 Automatic infrared secuity motion detector sensor
FUNCTION:

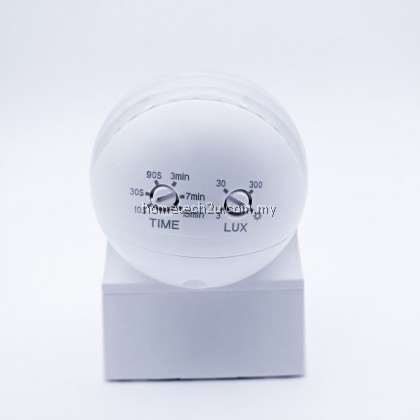

Ø Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “3” position (min). As for the adjustment pattern, please refer to the testing pattern.
Ø Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.
- 1xAutomatic infrared secuity motion detector sensor
